Description

Temporary Hot Water Hose Hire And Ancillary Equipment

Temporary hot water hose hire and ancillary equipment rental for heating systems and non-permanent installations.

We hold large stocks of modular hose and ancillary equipment for rapid supply, including, high pressure stainless braided hose with an 15 bar rating and PN flanged, as well as, standard 10 bar rubber suction and discharge hose

With a multitude of standard sizes, including, 2, 3, 4 and 6 inch, a complete temporary pipe-work system can be designed, delivered and installed within hours, maintaining your business continuity.

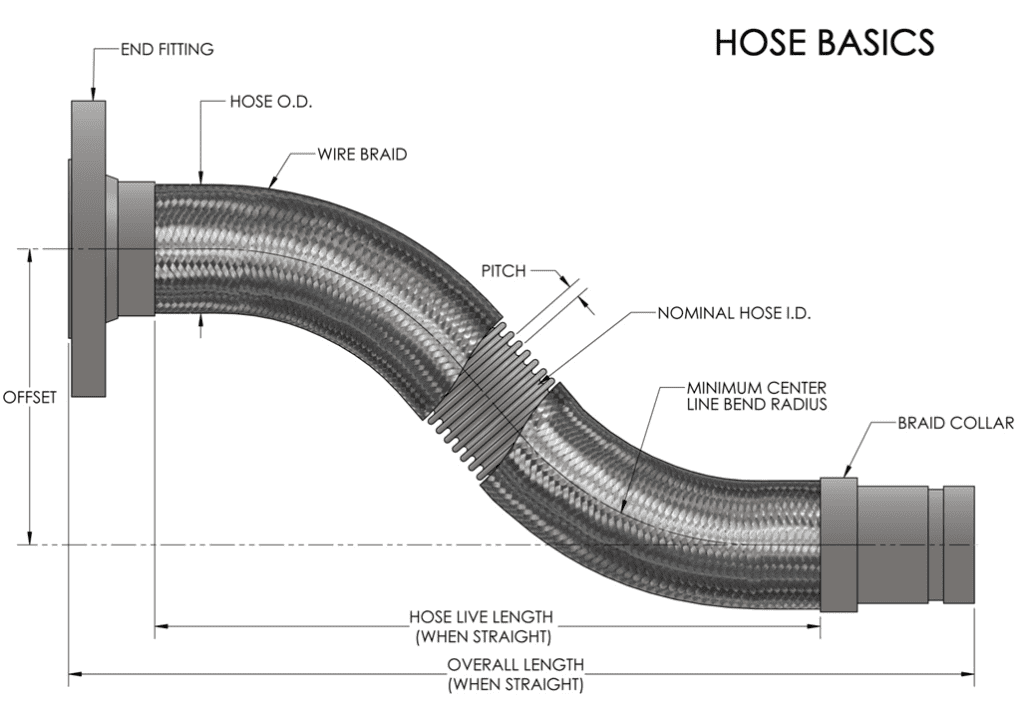

Below we can see the typical construction of braised stainless steel hose.

Download Factsheet

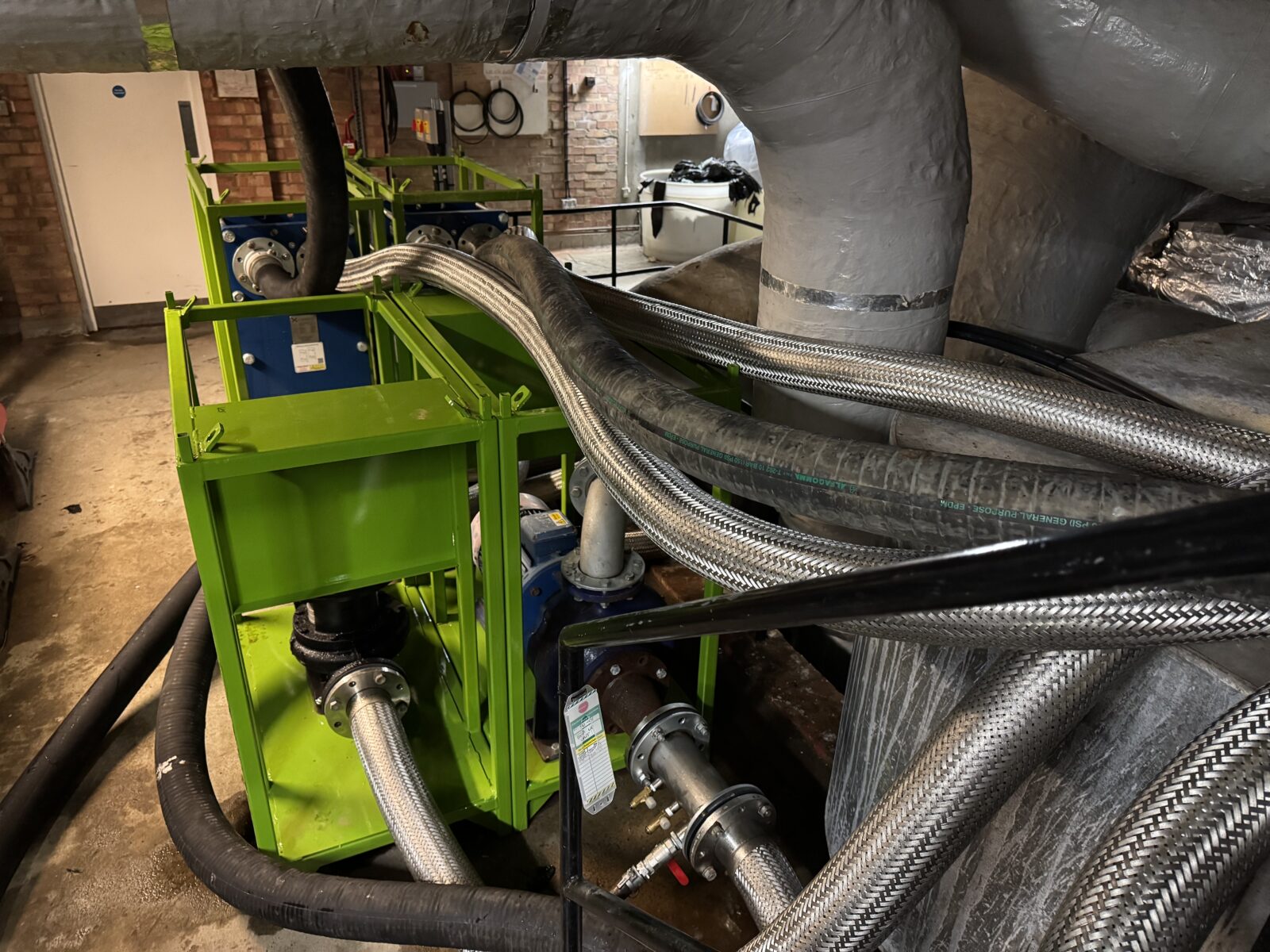

heat exchangers installed for load testing — Stainless steel 15 bar pipework installed for load testing a heating system.

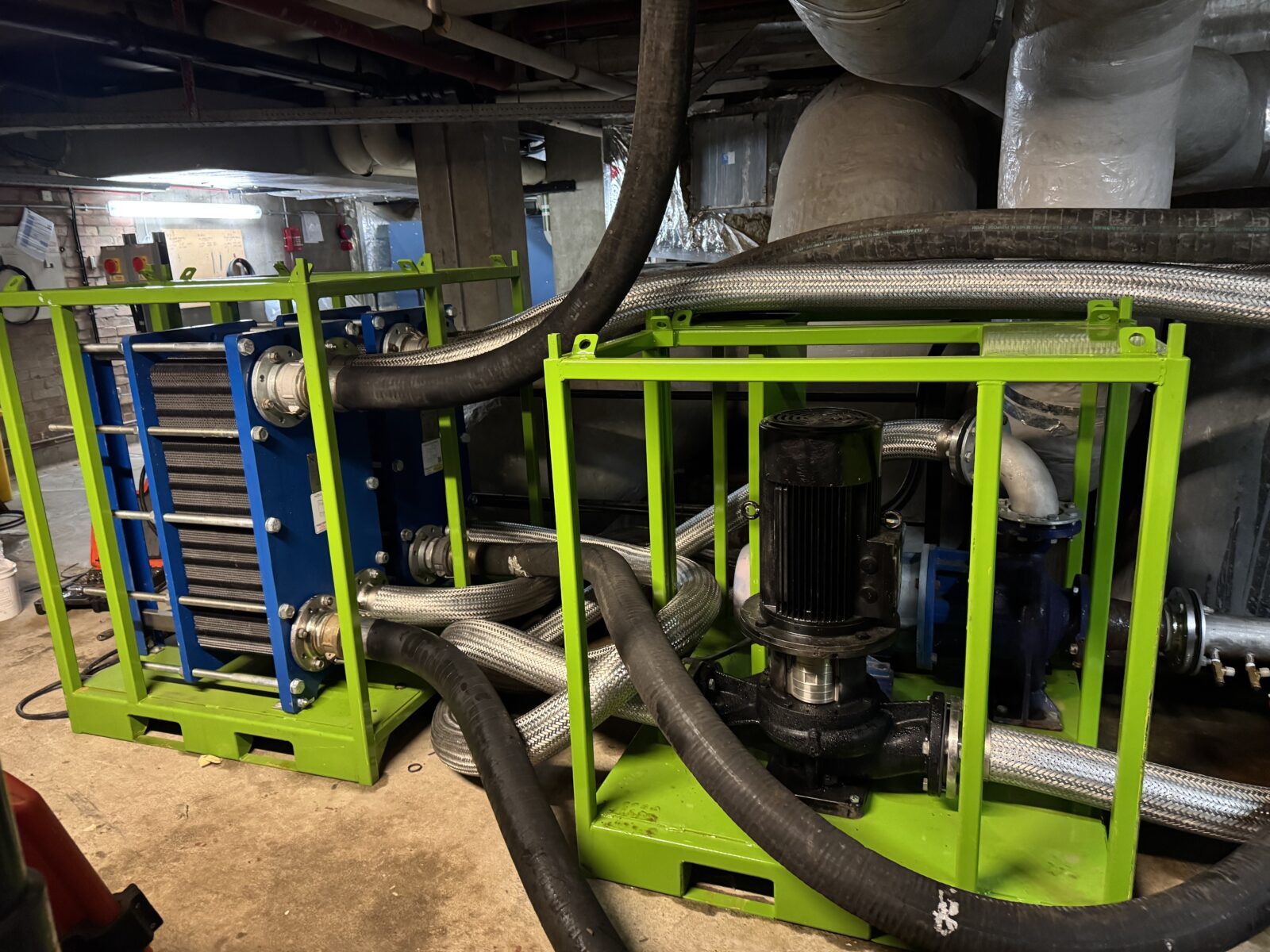

IMG_1614-1536x1152 — Stainless steel heating hose hire in use on a PHX LTHW primary system.

Temporary Hot Water Hose Hire

We have in stock the following hose types of temporary heating hose hire suitable for all LTHW systems, boiler hire and other water applications, in the following sizes- 2, 3, 4 and 6″

16Bar rated ISO 10380:2012 stainless steel braided corrugated tube fitted with PN16 flanges.

Our highest pressure rated hose is also the lightest and most flexible available for hire. Furthermore, with working pressures from 16 to 30Bar and a temperature range of -200 to 600 degrees, it’s a perfect choice for multitude of temporary temporary hot water hose hire installations.

6Bar rated rubber suction and discharge hose with camloc connectors

A good solid proven standard with us and commonly used in the hire industry, 10bar rubber/ suction and discharge hose is constructed from black flexible NR/SBR rubber with embedded high tensile steel helix & textile braid manufactured to BS1102: 1977(1983).

Working temp range: -20ºC to +70ºC and used by us to a maximum 6 Bar working pressure, after which we switch to Stainless Braided.

Composite hose is available in larger 6″ size.

For larger 6” bore systems we have available stock of Composite Polypropylene flexible pipe-work. Although heavier, less flexible and with a lower pressure rating than braided Stainless hose, Composite is very durable

Manufactured from polypropylene fabrics and films in addition to weather/ abrasion proof outer cover with galvanised internal and external wires for structural reinforcement, it has a working temp range of -30 to +80ºC @ 14 Bar max working pressure

Working temp range: -30 to +80ºC. 14 Bar working pressure.

Connection PN16 DN150.

An example of a temporary temporary pipe-work systems that can be quickly built from modular hosing and other components to build large systems with all the functionality you would expect.

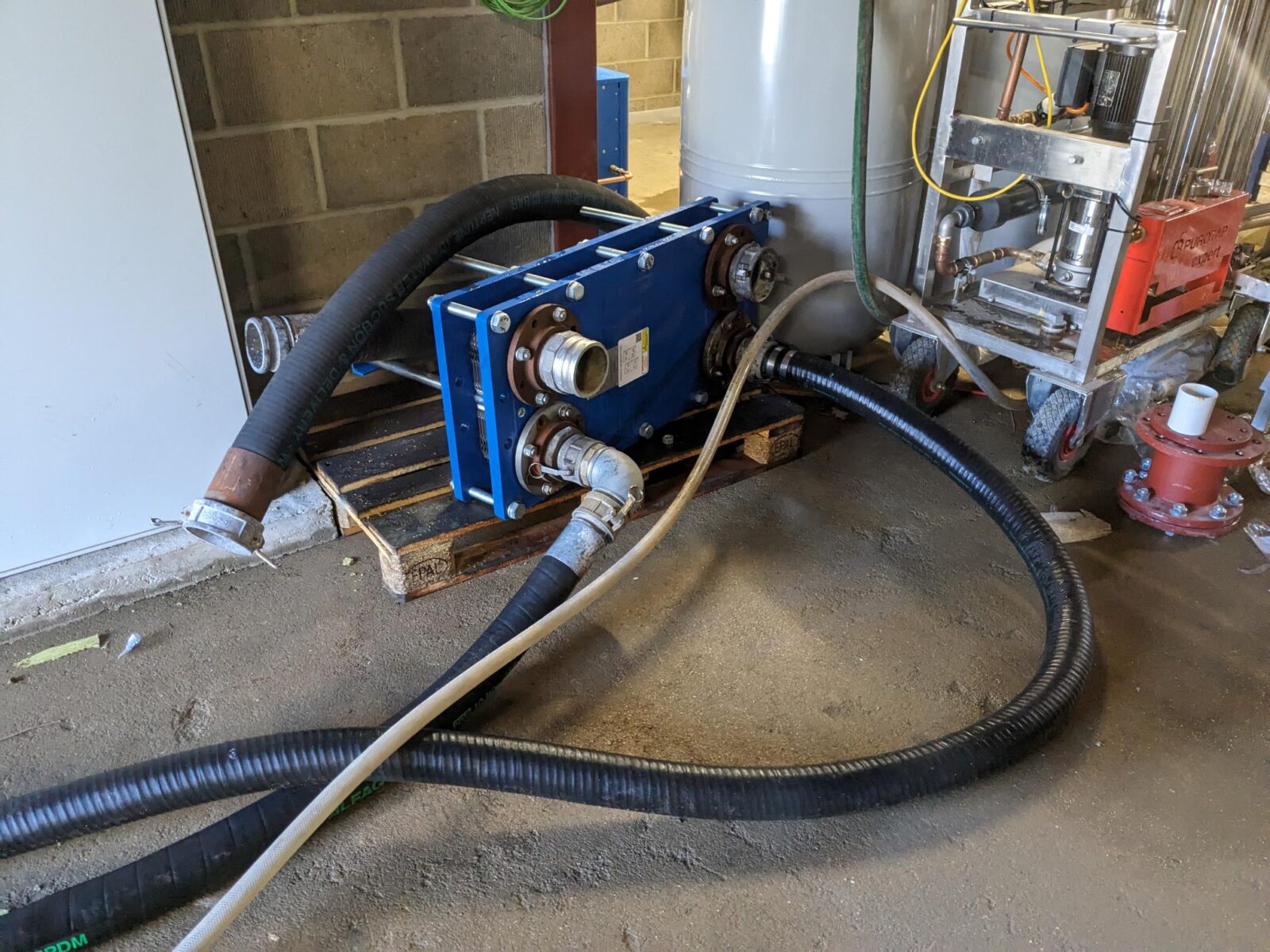

A 300kw plate heat exchanger being installed into a district heat pump system for load testing.

Pumps And Plate Heat Exchanger Hire

As well as temporary hot water hose hire, we supply pumps in various sizes for hire. Inverter driven they are perfectly flexible for temporary projects.

Bespoke packages can also be built for more specific and demanding projects, including containerised plantrooms with all the features you would expect from fixed installations.

Great for use with our 300kw boiler hire and 500kw boiler hire packages.

A temporary 16kw skid mounted pump with inverter installed into a district heating system.

A temporary containerised 22kw twin head pump station installed to a large event HVAC overlay project.

The pump station under construction in the workshop. This was built as a full stand alone plant room with all controls and components such as pressurisation set etc.

Pump Station Hire

Temporary twin head pump stations stocked in an ISO containers- complete with pressurisation/ expansion units, dosing pots, control panels etc. The control panels feature a dual switchable supply from fixed or generator supply.

Supplied with temporary chilled water hose hire for a complete hydraulic system with all the features you would expect from a permanent installation.

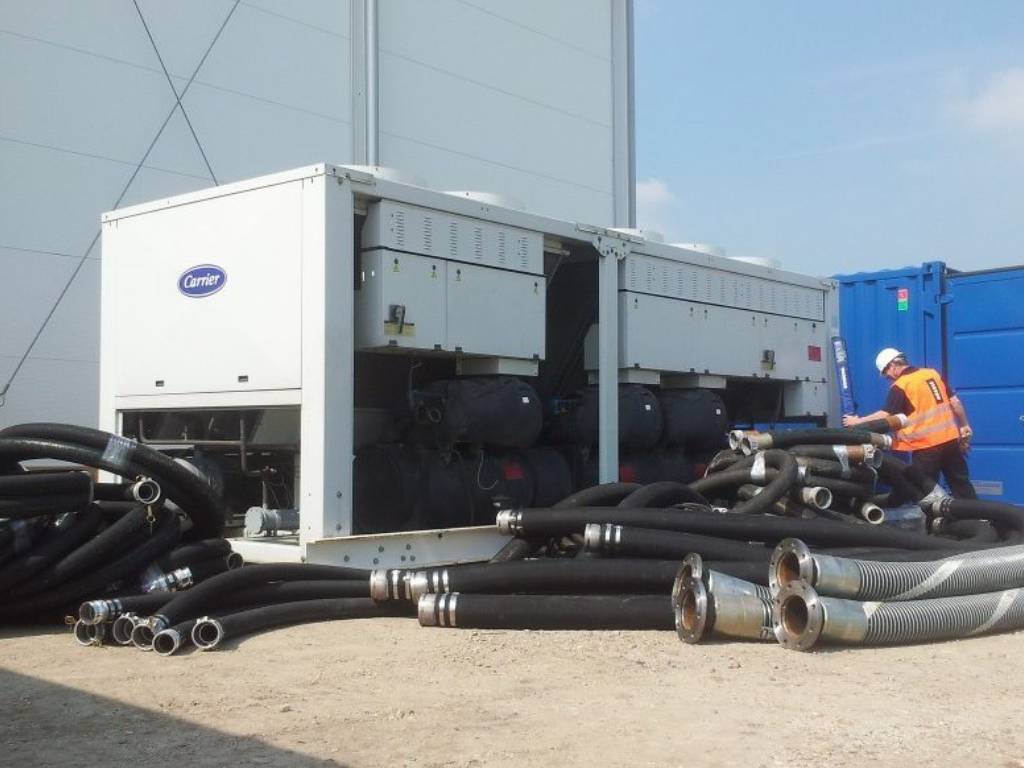

Containerised chilled water pumps for temporary chiller installations

Skid mounted inverter driven pump are available for hire now. Often these are supplied with chiller hire projects with extensive temporary pipe-work systems.
