Temporary event cooling hire- the Eton Manor Olympic Project

Temporary event cooling hire- the Eton Manor Olympic Project

Temporary Event Cooling Hire- A complete 400kw HVAC climate control system designed and installed by Climate Rentals for the Olympic ceremonies performers.

client one icon

CLIENT

The Eton Manor Additional Lightweight Structure

client two icon

INDUSTRY

Event Production

client three icon

SOLUTIONS

Temporary HVAC Hire

client icon

TOTAL KW

400kw cooling- 240kw Heating

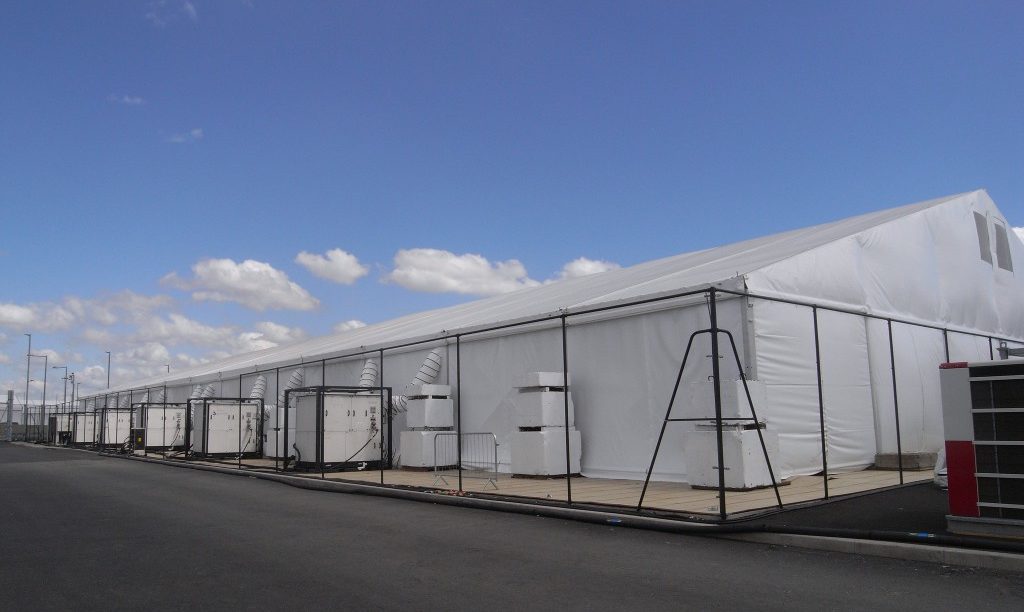

Temporary event HVAC installed to a temporary building near London.

Temporary Event Cooling Hire- The Challenge

To supply at short notice temporary event cooling hire for a lightweight structure on the Olympic site.



This HVAC project came about as a result of the test events held prior to the Olympics. Worryingly, it was found that insufficient space was available for the opening ceremony performers to make up in. Additional space was required fast and as a trusted supplier Nussli Switzerland turned to Climate Rentals for a solution.



At 70x 30mt, this large structure required a high air volume/ velocity system. Equipment was restricted to one side of the building and budget limitations meant distribution systems such as air sock could not be used.

THE ETON cooling an event

The Solution

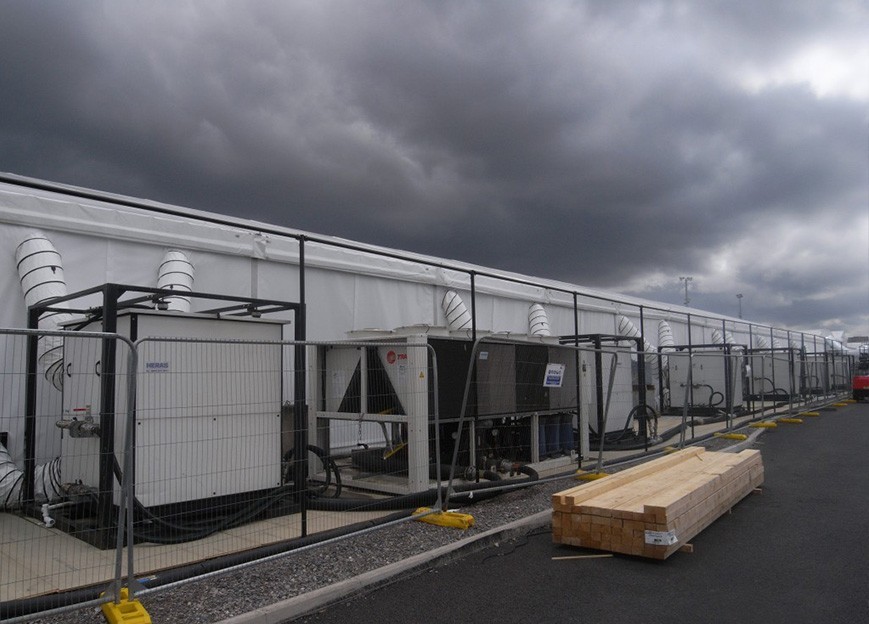

ACS supplied and fitted Six ACS 100.60 AHU’s and a 400kw portable water chiller with a reinforced rubber hose distribution system. Flexible ducting was used for supply and return air distribution.



Handily, the air handlers were able to supply the air at enough velocity to circulate air evenly over the whole internal area- consistent temperatures were maintained throughout the space in this way.



The whole event HVAC project was specified, fitted and commissioned within a week. Decommissioning took 6Hrs.

Temporary Event Cooling Hire- Summary

Simplicity of design and versatility of equipment was key to fast installation. ACS 80.60 air handler are a one box heating and cooling solution- quickly installed, they offer full automatic control of space temperatures.



In Addition, electric on- board heaters allow simultaneous heating and cooling in different zones, as opposed to, heat pump systems where all are heating or cooling. Dehumidification is also possible with the reheat option.



The chiller is self contained with a pump system fitted. A quick fit modular rubber pipe-work system using Camloc connections is fitted fast and is above all, reliable.

THE ETON
