Turn your ambient space into a cold store with chilled storage AHU hire.
Low temperature AHU hire is a great way to increase or maintain your chilled storage capacity.
Our ACR LT50 air handlers are designed to provide effective, efficient low temperature chilled storage for products and production areas.
These packaged units come with full automatic controls and electric defrost to provide accurate reliable control of the space temperature.
Highly effective coverage of large areas is possible due to the high volume fans- great for large warehouses and production areas requiring chilled storage AHU hire.
SPECIFICATION
Cooling [email protected] 3 degrees air on | 54Kw |
Max electrical Input Kw | 18.4Kw |
Fan air volume | 26,000m3/hr |
Cooling medium | 30% glycol/ water |
Shipping Weight | 750Kg |
Length | 4400mm |
Width | 900mm |
Height | 1100mm |

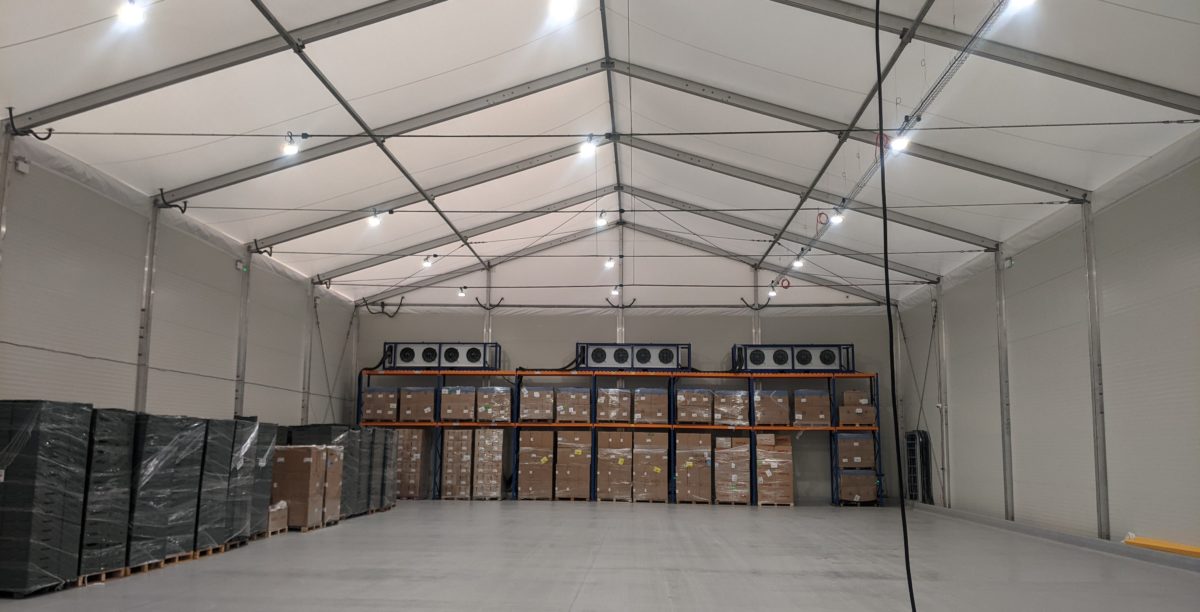

- Temporary cold store installations in warehouses.
- Installation to temporary buildings for low temperature chilled storage.
- Increasing cold supply chain capacity
- Increasing low temperature chilled storage capacity for peak production periods.
- Spot cooling in cold stores
- Low temperature cooling for chilled food production areas.
- Warehouse temperature control in hot summer months.
- Highly portable design- the units are mounted in lifting frames for safe handling and installation.
- Full defrost controls fitted on removable frame. The frame can be removed for ground level location.
- Manual over ride switching of all functions.
- Electric defrost (18.5kw)
- Glycol no loss bypass valve fitted- allows multiple units to be use independently on a common coolant system, meaning, accurate temperature control in all areas.
- ACR low temperature chillers provide cooling. The chillers are installed with hosing to form a cooling loop.
- 54kw cooling capacity at 3 Degrees- air flow 26,000 m3/hr
