1000kW Process Chiller Hire

1000kW Process Chiller Hire

1000kw process chiller hire to assist with a plastic injection moulding process.

client one icon

CLIENT

WH Smith Halo

client two icon

INDUSTRY

Plastic Injection Moulding

client three icon

SOLUTIONS

Water Chiller Hire

client icon

TOTAL KW

1000kw

1000kw chiller hire

1000kw Process Chiller Hire- The Challenge

The client was experiencing increasing production difficulties in the hot summer months due to on site chiller failures.



Importantly, chilled water performs the role of cooling the extrusion after the injection moulding process.



This situation was becoming critical and a production shut-down was looking increasingly imminent due to loss of cooling capacity.



Chilled water hosing and ancillary equipment hire

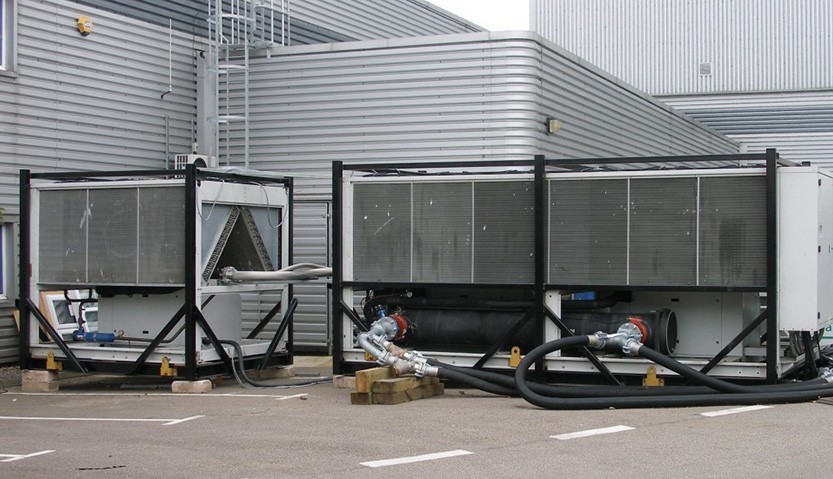

An example of a temporary chilled water hosing system. This set was installed with temporary chillers- it allowed for the flow to be changed over between the clients pumps.

The Solution

A modular 1000kw chiller was installed to meet the cooling needs of the plant. The chiller was supplied with all hosing, pump and cable as required.



Water was pumped from the hot side of a mixing pit through the chiller and into the cool side, forming a primary circuit that was pumped into the building.



Significantly, the complete installation was installed in two days and completely met the cooling requirements when commissioned.



Summary

The chiller provided seamless operation for 4 months which allowed for full production capacity through the warm summer months.



Operating at consistent loads of 600-800Kw through-out the rental period, this installation was very reliable and as a result the customer minimised their losses.



1000kw Process Chiller Hire- notes

This Modular cooling rig is a modified Climaveneta BE/SRAT/SL3603 chiller.



Notably, the design criteria was to allow for increased flexibility of use. As such, this chiller is more portable, can be fitted into awkward areas and can be used in a 650 or 1000Kw configuration- a very flexible- powerful- reliable machine.
