    Air Handling Unit Hire

    SPECIFICATION



    AHU- Cooling Duty @4 Degrees air on29kw
    Water flow/ return temperature -8/-4 Deg
    AHU Max Current22A
    Recommended chiller capacity @7/12 deg50kw



    AHU Weight 325Kg
    AHU- width 2050mm
    Depth 950mm
    Height 1100mm

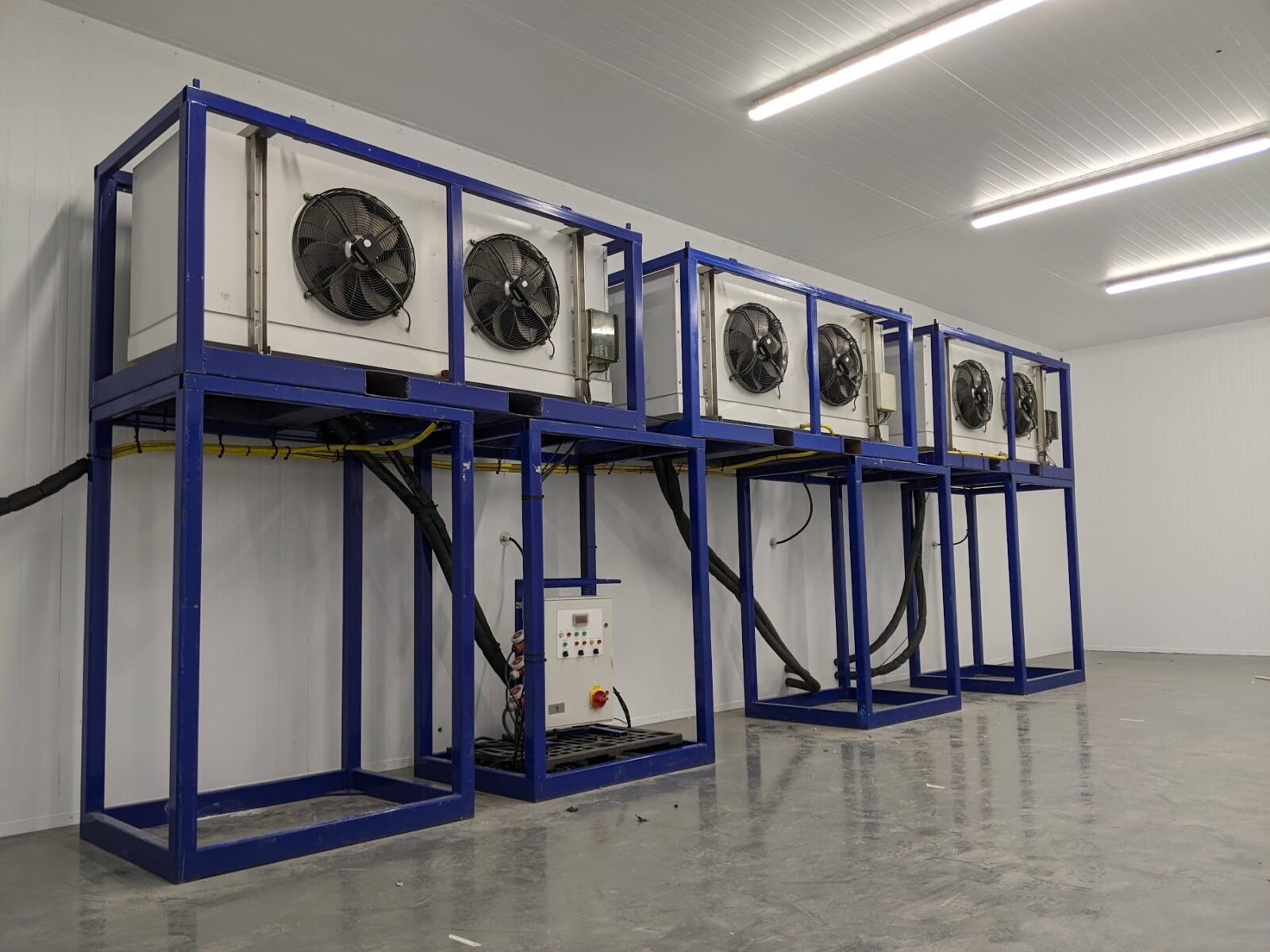

    1. Highly portable- the units are mounted in lifting from for safe transport and handling
    2. High capacity and airflow in a compact design.
    3. Fast installation- are supplied with modular hosing and electrical systems.
    4. Large stocks available for fast response to planned and emergency projects.
    5. Assured reliability, with full 24/7 engineering support and servicing.



    1. Space. Suitable locations for the internal and external plant. Internal AHU’s can be supplied with frames or scaffolding to elevate.
    2. Power. 32A 5pin cform sockets will be required for the plant. We can help with temporary power cabling, distribution and generation if required.

    Low Temperature AHU Rental- 5 Straightforward Steps

    1. Call or send an enquiry from the site to make contact us for low temperature AHU rental.
    2. With basic information we can quickly offer a proposal with budget costs, and if required, organise a site visit. Alternatively, if time is an issue, our experienced engineers can liaise remotely with your site to offer a solution quickly.
    3. When we have an order to proceed we will supply the equipment from stock to be installed by our engineering team.
    4. Our engineers will fully commission the installation and provide operational instruction to site operators.
    5. 24/7 call-out and engineering support ensures peace of mind at all times.

    Contact us now for friendly help and advice.
