Air Handling Unit Hire

Our dehumidifier hire- dehumidification rental units are designed to remove moisture on an industrial scale.

Chilled water AHU’s with electric re-heat

High volume AHU’s circulate air around the work area in large amounts at high velocity. The supply air from the air handling unit is heated by on board electric heaters. The warm air drives moisture in greater amounts from the work area, holding more as it is recovered to the unit.

The warm, moist return air is then passed across a large chilled water battery inside the air handler. When it hits this cold surface the water in the air condenses out leaving the unit by drain. The air then passes over the heating elements to be warmed again before being blown back into the work area.

Chilled water is supplied by industrial process chillers that maintain the water flow temperature as low as possible- in this way a greater condensing effect is achieved on the cooler surface.

Desiccant dehumidifiers..

Desiccant dehumidifiers remove water by natural absorption. Generally, moist air is passed over a desiccant wheel where moisture is absorbed. The wheel rotates into a separate heated airflow which removes the moisture, discharging it to atmosphere.

In a continuous process, they use an electrical heater to continuously regenerate the adsorbent material – i.e. they dry the absorbent material out so it can collect moisture again.

Dehumidifier Hire- Dehumidification Rental systems supplied and installed Nationwide.

A desiccant dehumidifier mounted in a portable lifting frame.

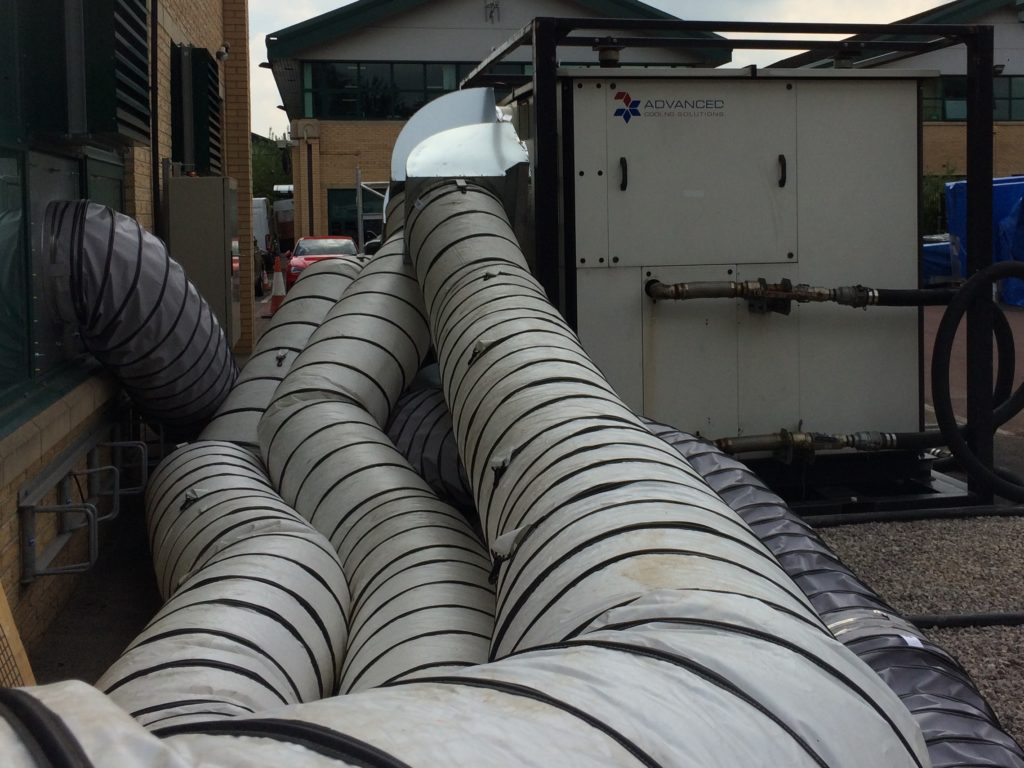

Another illustration of a data centre temporary cooling project that used ducted air for delivering cooling.
